| Body Material | 316 Stainless Steel |
|---|---|
| Seat Material | Virgin TFE |
| Washer Material | 316 Stainless Steel |
| A_in | 1.79, 1.84, 1.87, 1.97, 1.98, 2.01, 2.02 |
| A_mm | 46, 47, 50, 51 |
| B_in | 2.08, 2.78, 3.22, 3.24, 3.31, 3.36, 3.43, 3.65, 3.80, 3.92 |
| B_mm | 100, 53, 71, 82, 84, 85, 87, 93, 96 |
| C_in | 0.87, 1.02 |
| C_mm | |
| D_in | 0.43, 0.51 |
| D_mm | 11, 13 |
| E_in | 1.92, 2.01 |
| E_mm | 49, 51 |
| Panel Diameter_in | 0.80 |
| Panel Diameter_mm | 20 |
| Panel Thickness_in | 0.24 |
| Panel Thickness_mm | 6.0 |
| Proof Pressure Safety Factor | 2:1 |
| Cv Factor | 0.53, 0.80, 1.12, 2.45 |
| Maximum Operating Pressure | 3000 psig (207 Bar) |
| Orifice_in | 0.187, 0.156, 0.282, 0.316 |
| Orifice_mm | 4.00, 4.80, 7.20, 8.00 |
| Connections - Inlet | 1/4" Gyrolok, 1/2" Gyrolok, 1/2" NPT Female, 1/4" NPT Female, 10 mm Gyrolok, 12 mm Gyrolok, 18 mm Gyrolok, 3/8" Gyrolok, 3/8" NPT Female, 6 mm Gyrolok, 8 mm Gyrolok |
| Connections - Outlet | 1/4" Gyrolok, 1/2" Gyrolok, 1/2" NPT Female, 1/4" NPT Female, 10 mm Gyrolok, 12 mm Gyrolok, 18 mm Gyrolok, 3/8" Gyrolok, 3/8" NPT Female, 6 mm Gyrolok, 8 mm Gyrolok |
| Burst Pressure Safety Factor | 4:1 |

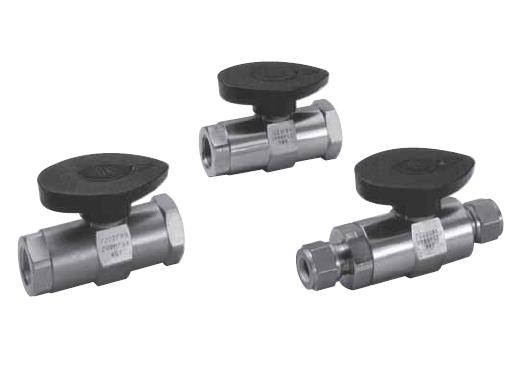

2-way Ball Valves Bi-directional Flow – 7G Series
Typical Applications
- Hydraulic test stands
- High pressure test stands
- Viscous media handling
- Gas and liquid applications
- Pilot plants in refineries and chemical plants
- Measurement and regulating equipment
