| Housing Material | Polyurethane coated aluminum |
|---|---|
| Weight_kg | 0.75 |
| Weight_Ib | 1.7 |
| Air Supply Connection | 1/8 Female NPT |
| Actuator Type | 180º Double Acting, 180º Spring Return, 90º Double Acting, 90º Spring Return |
| Cycle Time_s | 1 |
| Min. Cycle Life_cycles | 250000 |

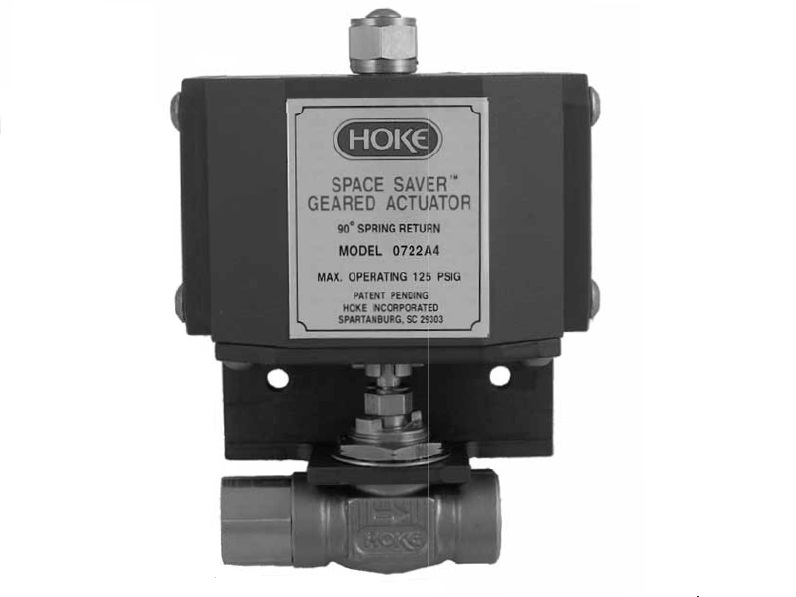

Space Saver™ Actuators
Air Actuated 0700 Series
_x000d_
This line of space saving pneumatic actuators is designed to provide safe, reliable control_x000d_
of most Hoke Flomite®, Selectomite®, and DL/TL ball valves. For added fl exibility, Space_x000d_
Saver actuators may be operated with many types of clean gases including air, natural gas,_x000d_
and nitrogen. Spring return and double acting versions are available for either 90º or 180º_x000d_
actuation. All Space Saver actuators come standard with a manual override feature for_x000d_
emergency operation.
Typical Applications
- _x000d_
- Chemical_x000d_
- Petrochemical_x000d_
- Oil and Gas Drilling_x000d_
- Research and Development_x000d_
- Environmental Control_x000d_
- Instrumentation Panels
Hoke, Gyrolok
